6PPD-Quinone (6PPD-q) From Tyres to Streams: Ecotoxicology and Regulation in the United States, United Kingdom, and European Union

- by
Tags: Featured

6PPD-quinone (6PPD-Q) is an oxidation transformation product of the tyre antiozonant 6PPD and has been identified as the principal causal toxicant in urban runoff mortality syndrome in coho salmon (Tian et al., 2021; Tian et al., 2022). 6PPD-Q can leach from tyre wear particles (TWPs) and be transported in stormwater; field studies have measured storm-associated concentrations from low ng/L into the µg/L range, with episodic peaks capable of exceeding acute-effect thresholds for coho salmon (Johannessen et al., 2022; Hu et al., 2023; Lane et al., 2024). Coho salmon are exceptionally sensitive, with reported acute LC50 values of 41–95 ng/L, whereas other fish and tested freshwater invertebrates show markedly different sensitivities (Tian et al., 2022; Brinkmann et al., 2022; Lo et al., 2023; Prosser et al., 2023). Reliable quantification is achieved using LC-MS-based methods supported by isotope-labelled standards and matrix-appropriate QA/QC; US EPA Draft Method 1634 provides a current LC-MS/MS framework for aqueous matrices (Tian et al., 2022; US EPA, 2024c).

Regulatory responses are advancing internationally. In the United States, the US EPA has published an acute freshwater screening value for 6PPD-Q and issued an Advance Notice of Proposed Rulemaking under the Toxic Substances Control Act (TSCA), while California requires manufacturers of motor vehicle tyres containing 6PPD to undertake alternatives analysis (US EPA, 2024a; US EPA, 2024b; DTSC, 2023). In the United Kingdom, the Environment Agency has identified 6PPD-Q for further detailed assessment within its tyre-additive hazard and risk prioritisation work (Environment Agency, 2025). In the European Union, the Netherlands and Austria have notified an intention to prepare a REACH restriction proposal covering 6PPD and related compounds in rubber tyres, with the Annex XV dossier expected in March 2027 (ECHA, 2026).

Mitigation should combine source-side evaluation of safer alternatives with controls that reduce roadway runoff reaching sensitive waters. Full-scale field evidence shows that bioretention can reduce 6PPD-Q mass loading to receiving waters by more than approximately 90% under typical storm conditions (Rodgers et al., 2023). Human biomonitoring studies have detected 6PPD and 6PPD-Q in urine and in paired plasma and urine, demonstrating exposure but not establishing adverse human health risk; chronic human toxicological and epidemiological data remain limited (Du et al., 2022; Liu et al., 2024).

Key messages for regulators and industry

  • 6PPD-quinone is a stormwater-transported contaminant that is acutely toxic to coho salmon at tens of ng/L, although sensitivity varies markedly between species.
  • Monitoring should target rainfall and first-flush events and use well-controlled LC-MS/MS methods, appropriate isotope-labelled standards, and sample-handling procedures that minimise sorptive losses.
  • Risk management should combine evaluation of safer tyre formulations with effective stormwater treatment while maintaining tyre performance and road safety.
  1. Introduction

6PPD is a widely used antiozonant and antioxidant in tyre rubber that protects against ozone- and oxidation-induced degradation. During tyre use and environmental exposure, 6PPD can be oxidised to 6PPD-quinone (6PPD-Q), while tyre and road wear particles provide a continuing source of tyre-derived chemicals to roadway dust and runoff (Tian et al., 2021; Seiwert et al., 2022; Hu et al., 2023).

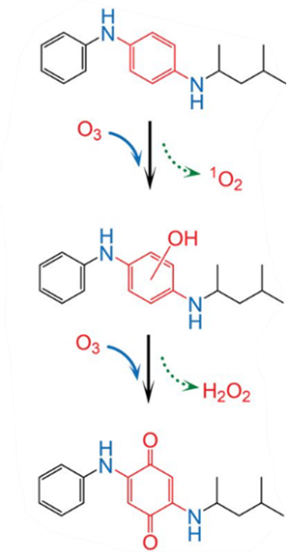

Figure 1                6PPD reacts with ozone to form 6PPD-quinone (Image with permission from Zhenyu Tian, Barnett Institute, Northeastern University, USA)

The causal relationship between 6PPD-Q and urban runoff mortality syndrome in coho salmon was established by Tian et al. (2021), and subsequent work using a commercial analytical standard revised the juvenile coho LC50 to 95 ng/L (Tian et al., 2022). Early-life-stage juvenile coho have shown an even lower 24-h LC50 of 41 ng/L (Lo et al., 2023). Sensitivity is not uniform across salmonids: reported LC50 values are approximately 590 ng/L for brook trout and 1,000 ng/L for rainbow trout, while no mortality was observed in Arctic char or white sturgeon at substantially higher tested concentrations (Brinkmann et al., 2022). Tested freshwater invertebrates were also markedly less sensitive than coho salmon (Prosser et al., 2023). Field monitoring confirms that exposure is episodic and strongly associated with stormwater, with concentrations ranging from low ng/L to µg/L in urban-affected waters (Johannessen et al., 2022; Lane et al., 2024).

Regulatory frameworks are evolving in response to this evidence. In the United States, the US EPA has developed an acute freshwater screening value, a draft analytical method, and an information-gathering process under TSCA; California has separately listed motor vehicle tyres containing 6PPD as a Priority Product requiring alternatives analysis. In the United Kingdom, the Environment Agency has prioritised tyre additives, including 6PPD-Q, for further assessment. In the European Union, the Netherlands and Austria have notified an intention to prepare a REACH Annex XV restriction proposal for 6PPD and related PPD/PD substances used in rubber tyres (US EPA, 2024a; US EPA, 2024b; US EPA, 2024c; DTSC, 2023; Environment Agency, 2025; ECHA, 2026). This review integrates current evidence on occurrence, fate, toxicology, analytical measurement, regulatory status, and mitigation options relevant to researchers, regulators, and industry stakeholders.

  1. Chemical Properties, Environmental Fate, and Toxicology

6PPD-Q is an oxidised quinone transformation product of 6PPD. Experimentally measured aqueous solubility is 38 ± 10 µg/L and log KOW is 4.30 ± 0.02. Despite its hydrophobicity, 6PPD-Q can leach readily from tyre wear particles: flow-through simulations measured release of approximately 5.2 µg per gram of TWP over 6 h (Hu et al., 2023). Laboratory ozonation experiments further demonstrate that 6PPD forms 6PPD-Q alongside numerous other oxidative transformation products (Seiwert et al., 2022). Field studies have detected 6PPD-Q in stormwater-affected surface waters from low ng/L concentrations to µg/L peaks, with concentrations increasing markedly during rainfall events (Johannessen et al., 2022; Lane et al., 2024). Repeated road deposition and storm-driven mobilisation therefore create recurrent exposure pulses, while longer-term environmental persistence remains dependent on matrix and environmental conditions.

Acute toxicity is strongly species-dependent. Coho salmon are among the most sensitive species identified to date, with reported LC50 values of 95 ng/L for juvenile coho and 41 ng/L for early-life-stage juveniles (Tian et al., 2022; Lo et al., 2023). Brook trout and rainbow trout are less sensitive, with reported LC50 values of 590 ng/L and 1.00 µg/L, respectively, while Arctic char and white sturgeon showed no mortality at the highest concentrations tested in the same study (Brinkmann et al., 2022). Exposed sensitive fish show characteristic signs including increased ventilation, gasping, spiralling, erratic swimming, and loss of equilibrium before death (Brinkmann et al., 2022; Lo et al., 2023). In contrast, four freshwater invertebrate species showed no significant mortality at the highest tested concentrations, with no-effect concentrations in the µg/L range (Prosser et al., 2023). These findings caution against treating 6PPD-Q toxicity as uniform across salmonids or aquatic taxa.

Human exposure has now been demonstrated analytically, although its sources and health significance remain uncertain. A biomonitoring study in South China detected 6PPD and 6PPD-Q in human urine, and a subsequent study detected both compounds in paired plasma and urine samples (Du et al., 2022; Liu et al., 2024). These studies establish internal exposure but do not demonstrate that environmental concentrations cause adverse effects in humans. Potential exposure pathways include inhalation of tyre-associated particles and ingestion or dermal contact with contaminated environmental media, but the relative contribution of each pathway is not yet well resolved. Chronic human toxicological and epidemiological evidence is currently insufficient for robust quantitative human-health risk characterisation (Chen et al., 2023; Liu et al., 2024).

Overall, the evidence is strongest for acute ecological risk to coho salmon and some other sensitive fish during stormwater pulses. The wide interspecies variation in toxicity, recurrent urban runoff exposure, and continuing uncertainties in environmental fate justify targeted monitoring and further risk assessment (Tian et al., 2022; Brinkmann et al., 2022; Lo et al., 2023; Lane et al., 2024). Human exposure is measurable, but current evidence does not support direct extrapolation from aquatic toxicity to human-health effects (Du et al., 2022; Liu et al., 2024).

  1. Regulatory Status: United States, United Kingdom, and European Union

6PPD-Q has gained regulatory attention because of its acute aquatic toxicity, stormwater-driven occurrence, and demonstrated role in coho salmon mortality. The regulatory position described below is current to September 2026.

United States: The US EPA published an acute aquatic life screening value of 11 ng/L for 6PPD-Q in freshwater in May 2024. EPA explicitly describes this as a screening value rather than a recommended water quality criterion because the available toxicity dataset is insufficient for full criteria derivation (US EPA, 2024a). EPA also issued an Advance Notice of Proposed Rulemaking under TSCA Section 6 in 2024 to gather information on potential risks from 6PPD and 6PPD-Q and to inform possible subsequent regulatory action (US EPA, 2024b). Separately, California’s Department of Toxic Substances Control made motor vehicle tyres containing 6PPD a Safer Consumer Products Priority Product effective 1 October 2023, requiring manufacturers to undertake alternatives analysis (DTSC, 2023). EPA Draft Method 1634 provides an LC-MS/MS approach for aqueous 6PPD-Q monitoring but remains a draft, not-yet-approved method (US EPA, 2024c).

United Kingdom: The Environment Agency’s 2025 Chief Scientist’s Group assessment screened and prioritised tyre additives using available hazard, tonnage, and modelled exposure information. 6PPD-Q was among the substances identified for further detailed assessment, reflecting concern about its aquatic hazard and predicted environmental risk (Environment Agency, 2025). The report is a prioritisation exercise rather than a 6PPD-Q-specific statutory environmental quality standard or restriction, and it identifies additional data generation and refinement as necessary next steps.

European Union: The ECHA Registry of Restriction Intentions records a joint intention from the Netherlands and Austria to prepare a REACH restriction proposal covering certain phenyl-p-phenylenediamines and related para-substituted phenylenediamines, including 6PPD in rubber tyres and potentially other rubber goods. The intention was updated in May 2026 and lists 12 March 2027 as the expected Annex XV dossier submission date (ECHA, 2026). This is therefore a notified restriction intention, not yet a submitted or adopted EU restriction, and the eventual scope and risk-management measures remain subject to the REACH process.

Across the three jurisdictions, the common direction is toward improved exposure measurement, toxicity assessment, evaluation of alternatives, and reduction of high-risk releases, but the legal and technical stages differ. The United States currently combines a federal screening value and TSCA information gathering with California’s alternatives-analysis requirements; the United Kingdom is at a hazard/risk prioritisation and further-assessment stage; and the European Union has a notified REACH restriction intention with an Annex XV dossier expected in 2027 (US EPA, 2024a; US EPA, 2024b; DTSC, 2023; Environment Agency, 2025; ECHA, 2026).

  1. Analytical Methods, Human Health Risk, Regulatory Outlook, and Mitigation Strategies

Accurate measurement of 6PPD and 6PPD-Q is essential for environmental risk assessment because exposure is often episodic and closely linked to rainfall and roadway runoff. Event-triggered grab samples and event composites can both be useful, depending on whether the objective is to characterise peak concentration or integrated storm exposure (Johannessen et al., 2022; Lane et al., 2024). Sample handling is important because 6PPD-Q can sorb to laboratory materials; glass containers minimise losses compared with several alternative materials, and controlled cold storage can preserve samples for subsequent analysis (Hu et al., 2023; Lane et al., 2024). Sampling programmes should therefore be designed around storm timing as well as analytical sensitivity.

Analytical determination of 6PPD-Q is predominantly performed by liquid chromatography coupled to tandem or high-resolution mass spectrometry. Isotope-dilution LC-MS/MS enables low-ng/L quantification and helps correct for matrix effects and analytical losses (Tian et al., 2022). Extraction and clean-up requirements depend on the matrix: aqueous methods may use direct analysis or concentration steps, while solids and tyre-derived materials require matrix-appropriate solvent extraction and clean-up (Chen et al., 2023). QA/QC should include method blanks, calibration verification, isotope-labelled standards, recovery or matrix-performance checks, and appropriate duplicates or replicates. US EPA Draft Method 1634 provides a formal isotope-dilution LC-MS/MS framework for aqueous matrices; however, it remains a draft method and should not be described as a fully approved harmonised standard (US EPA, 2024c).

Human biomonitoring has moved the discussion from hypothetical exposure to demonstrated internal exposure. 6PPD and 6PPD-Q have been measured in urine, and both compounds have also been reported in paired plasma and urine samples (Du et al., 2022; Liu et al., 2024). These findings are important for exposure assessment, but they do not by themselves establish toxicity, disease causation, or a quantitative human-health risk. Potential inhalation, ingestion, and dermal pathways require further source-apportionment work, and chronic human-specific toxicological and epidemiological datasets remain limited (Chen et al., 2023). Consequently, human-health conclusions should remain cautious and should be separated from the much stronger evidence for acute aquatic toxicity.

Regulatory attention is likely to remain focused on filling these evidence gaps while evaluating practical risk-management options. In the United States, the 2024 TSCA ANPRM is an information-gathering step that may inform later regulatory action, and California manufacturers are progressing alternatives analyses (US EPA, 2024b; DTSC, 2023). In the United Kingdom, the Environment Agency’s 2025 prioritisation identifies the need for further assessment of tyre additives including 6PPD-Q (Environment Agency, 2025). In the European Union, the Netherlands and Austria have notified a REACH restriction intention, with the Annex XV dossier expected in March 2027 (ECHA, 2026).

Mitigation should address both source and pathway. Source-side measures include evaluating alternative antiozonants, reformulation, or other approaches that reduce formation or release of 6PPD-Q; however, candidate alternatives require rigorous assessment of tyre performance, road safety, environmental hazard, and the potential for regrettable substitution (DTSC, 2023; ECHA, 2026). Pathway controls can reduce the quantity of roadway-derived contamination reaching surface waters. In a full-scale field study, a mature bioretention cell reduced 6PPD-Q mass loading by approximately an order of magnitude, and modelling indicated greater than approximately 90% reduction under most typical storm conditions (Rodgers et al., 2023). Because 6PPD-Q can leach from TWPs and occur in the dissolved phase, mitigation systems should be evaluated for removal of both particle-associated and dissolved contaminant fractions (Hu et al., 2023).

  1. Conclusions

6PPD-Q is an emerging contaminant of substantial ecological concern because stormwater concentrations can overlap with acute-effect concentrations for coho salmon. The strongest evidence supports exceptional sensitivity of coho salmon, while toxicity varies by orders of magnitude among other fish and invertebrate species (Tian et al., 2022; Brinkmann et al., 2022; Lo et al., 2023; Prosser et al., 2023). Storm-driven monitoring is therefore critical for identifying biologically relevant exposure pulses (Johannessen et al., 2022; Lane et al., 2024).

The regulatory picture is advancing but should be described precisely. The United States has an acute freshwater screening value, a TSCA information-gathering process, and California alternatives-analysis requirements; the United Kingdom has prioritised 6PPD-Q for further assessment; and the European Union has a notified REACH restriction intention from the Netherlands and Austria, with an Annex XV dossier expected in 2027 (US EPA, 2024a; US EPA, 2024b; DTSC, 2023; Environment Agency, 2025; ECHA, 2026). Human exposure has been demonstrated through biomonitoring, but the evidence base is not yet sufficient to quantify chronic human-health risk (Du et al., 2022; Liu et al., 2024).

Risk reduction should combine robust, storm-event-focused measurement with source-side alternatives assessment and proven runoff controls. Bioretention currently provides direct field evidence for substantial reduction of 6PPD-Q mass loading, while development of safer tyre formulations should proceed with careful assessment of functional performance and replacement-chemical hazards (Rodgers et al., 2023; DTSC, 2023). Continued analytical standardisation, environmental monitoring, and species-specific toxicological research will be essential for proportionate and scientifically defensible management of 6PPD-Q.

References

Brinkmann, M., Montgomery, D., Selinger, S., Miller, J.G.P., Stock, E., Alcaraz, A.J., Challis, J.K., Weber, L., Janz, D., Hecker, M. and Wiseman, S., 2022. Acute toxicity of the tire rubber-derived chemical 6PPD-Quinone to four fishes of commercial, cultural, and ecological importance. Environmental Science & Technology Letters, 9(4), pp.333–338. doi:10.1021/acs.estlett.2c00050.

Chen, X., He, T., Yang, X., Gan, Y., Qing, X., Wang, J. and Huang, Y., 2023. Analysis, environmental occurrence, fate and potential toxicity of tire wear compounds 6PPD and 6PPD-Quinone. Journal of Hazardous Materials, 452, 131245. doi:10.1016/j.jhazmat.2023.131245.

Department of Toxic Substances Control (DTSC), 2023. Adopted Priority Product: Motor Vehicle Tires Containing 6PPD. California Safer Consumer Products Program. Available at: https://dtsc.ca.gov/scp/motor_vehicle_tires_containing_6ppd/ (Accessed: 25 September 2026).

Du, B., Liang, B., Li, Y., Shen, M., Liu, L.-Y. and Zeng, L., 2022. First report on the occurrence of N-(1,3-dimethylbutyl)-N′-phenyl-p-phenylenediamine (6PPD) and 6PPD-Quinone as pervasive pollutants in human urine from South China. Environmental Science & Technology Letters, 9(12), pp.1056–1062. doi:10.1021/acs.estlett.2c00821.

Environment Agency, 2025. Hazard screening and UK risk prioritisation for tyre additives. Chief Scientists Group, Environment Agency, UK. Published 18 July 2025.

European Chemicals Agency (ECHA), 2026. Registry of Restriction Intentions until Outcome: Certain phenyl-p-phenylenediamines (PPDs) and other para-substituted phenylenediamines (PDs). Available at: https://echa.europa.eu/registry-of-restriction-intentions (Accessed: 25 September 2026).

Hu, X., Zhao, H.N., Tian, Z., Peter, K.T., Dodd, M.C. and Kolodziej, E.P., 2023. Chemical characteristics, leaching, and stability of the ubiquitous tire rubber-derived toxicant 6PPD-Quinone. Environmental Science: Processes & Impacts, 25(5), pp.901–911. doi:10.1039/D3EM00047H.

Johannessen, C., Helm, P., Lashuk, B., Yargeau, V. and Metcalfe, C.D., 2022. The tire wear compounds 6PPD-Quinone and 1,3-diphenylguanidine in an urban watershed. Archives of Environmental Contamination and Toxicology, 82(2), pp.171–179. doi:10.1007/s00244-021-00878-4.

Lane, R.F., Smalling, K.L., Bradley, P.M., Greer, J.B., Gordon, S.E., Hansen, J.D., Kolpin, D.W., Spanjer, A.R. and Masoner, J.R., 2024. Tire-derived contaminants 6PPD and 6PPD-Q: analysis, sample handling, and reconnaissance of United States stream exposures. Chemosphere, 363, 142830. doi:10.1016/j.chemosphere.2024.142830.

Liu, C., Zhao, X., Guo, L., Yu, Q., Zhang, W., Peng, Z. et al., 2024. Emerging N-(1,3-dimethylbutyl)-N′-phenyl-p-phenylenediamine (6PPD) and 6PPD quinone in paired human plasma and urine from Tianjin, China: preliminary assessment with demographic factors. Journal of Hazardous Materials, 476, 134818. doi:10.1016/j.jhazmat.2024.134818.

Lo, B.P., Marlatt, V.L., Liao, X., Reger, S., Gallilee, C., Ross, A.R.S. and Brown, T.M., 2023. Acute toxicity of 6PPD-Quinone to early life stage juvenile Chinook (Oncorhynchus tshawytscha) and coho (Oncorhynchus kisutch) salmon. Environmental Toxicology and Chemistry, 42(4), pp.815–822. doi:10.1002/etc.5568.

Prosser, R.S., Salole, J. and Hang, S., 2023. Toxicity of 6PPD-Quinone to four freshwater invertebrate species. Environmental Pollution, 337, 122512. doi:10.1016/j.envpol.2023.122512.

Rodgers, T.F.M., Wang, Y., Humes, C., Jeronimo, M., Johannessen, C., Spraakman, S., Giang, A. and Scholes, R.C., 2023. Bioretention cells provide a 10-fold reduction in 6PPD-Quinone mass loadings to receiving waters: evidence from a field experiment and modeling. Environmental Science & Technology Letters, 10(7), pp.582–588. doi:10.1021/acs.estlett.3c00203.

Seiwert, B., Nihemaiti, M., Troussier, M., Weyrauch, S. and Reemtsma, T., 2022. Abiotic oxidative transformation of 6-PPD and 6-PPD quinone from tires and occurrence of their products in snow from urban roads and in municipal wastewater. Water Research, 212, 118122. doi:10.1016/j.watres.2022.118122.

Tian, Z., Zhao, H., Peter, K.T., Gonzalez, M., Wetzel, J., Wu, C. et al., 2021. A ubiquitous tire rubber-derived chemical induces acute mortality in coho salmon. Science, 371(6525), pp.185–189. doi:10.1126/science.abd6951.

Tian, Z., Gonzalez, M., Rideout, C.A., Zhao, H.N., Hu, X., Wetzel, J., Mudrock, E., James, C.A., McIntyre, J.K. and Kolodziej, E.P., 2022. 6PPD-Quinone: revised toxicity assessment and quantification with a commercial standard. Environmental Science & Technology Letters, 9(2), pp.140–146. doi:10.1021/acs.estlett.1c00910.

US Environmental Protection Agency (US EPA), 2024a. Acute Aquatic Life Screening Value for 6PPD-Quinone in Freshwater. EPA 822-R-24-004. Office of Water, Washington, DC.

US Environmental Protection Agency (US EPA), 2024b. Advance Notice of Proposed Rulemaking on 6PPD and Its Transformation Product, 6PPD-Quinone. Toxic Substances Control Act Section 6. Available at: https://www.epa.gov/assessing-and-managing-chemicals-under-tsca/advance-notice-proposed-rulemaking-6ppd-and-its (Accessed: 25 September 2026).

US Environmental Protection Agency (US EPA), 2024c. Draft Method 1634: Determination of 6PPD-Quinone in Aqueous Matrices Using Liquid Chromatography with Tandem Mass Spectrometry (LC/MS/MS). EPA 821-D-24-001. Office of Water, Washington, DC.

Ken Scally1,2

1Calibre Scientific, Ireland, 2Mount Royal University, Calgary, Canada
